MEASURES
-
Rails: +/- 24VDC under load
-
DC offset at speaker teminals: +/- 2mV
-
BIAS: 1.3A (0.61V on R13/R14)
-
Voltage gain: 10 (20dB)
-
THD+N (at 1 Watt into 8 Ohms at 1kHz): 0.08%
-
THD (at 1 Watt into 8 Ohms at 1kHz): 0.04%
MEASURES
-
Rails: +/- 24VDC under load
-
DC offset at speaker teminals: +/- 2mV
-
BIAS: 1.3A (0.61V on R13/R14)
-
Voltage gain: 10 (20dB)
-
THD+N (at 1 Watt into 8 Ohms at 1kHz): 0.08%
-
THD (at 1 Watt into 8 Ohms at 1kHz): 0.04%
 |  |  |
|---|---|---|
 |  |  |
 |  |
| | |
|---|---|---|
| | |
| |
NOTES
-
R7 changed to 52.3k to remove excess negative DC offset at the output of the amp
-
R4 changed to 8.2 Ohms and 220uF bipolar capacitor added to remove DC offset at Edcor input (pin 1)
-
Boards, Edcor transformers and MOSFETs from TeaBag
-
Harris IRFP9240 MOSFETs
-
Matched Toshiba JFETs from FET Audio
-
Dual mono implementation
-
2 x 250VA transformers from Toroidy - 230V primary, 2x18V secondary
-
8 x 22000uF KEMET PEH200 in power supply
-
Deluxe 4U chassis from Hi-Fi 2000
RESOURCES
-
Manual: First Watt M2
-
diyAudio: Official M2 schematic, M2 Clone boards with 120mm UMS spacing
-
Other: Edcor
Last update: 10.03.2019.
NOTES
-
R7 changed to 52.3k to remove excess negative DC offset at the output of the amp
-
R4 changed to 8.2 Ohms and 220uF bipolar capacitor added to remove DC offset at Edcor input (pin 1)
-
Boards, Edcor transformers and MOSFETs from TeaBag
-
Harris IRFP9240 MOSFETs
-
Matched Toshiba JFETs from FET Audio
-
Dual mono implementation
-
2 x 250VA transformers from Toroidy - 230V primary, 2x18V secondary
-
8 x 22000uF KEMET PEH200 in power supply
-
Deluxe 4U chassis from Hi-Fi 2000
RESOURCES
-
Manual: First Watt M2
-
diyAudio: Official M2 schematic, M2 Clone boards with 120mm UMS spacing
-
Other: Edcor
Last update: 10.03.2019.
Technics SL-1200 Mods
Mains transformer moved to a separate chassis - see Power Supply page.

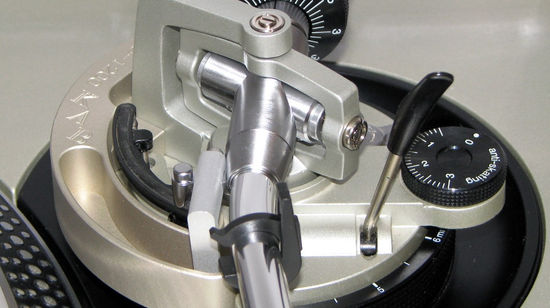

Tonearm rewiring.
Please refresh the page if you see "This video is unavailable" above.
 |  |  |
|---|---|---|
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Tonearm fluid damping.
RESOURCES
-
diyAudio: Technics SL-1200 DC Power Supply
-
The Art of Sound: Rewiring SL-1200 Tonearm
-
KAB USA: Website, Rewiring instructions
Last update: 11.06.2023.
